Baldwin Traditional Square Reserve Deadbolt

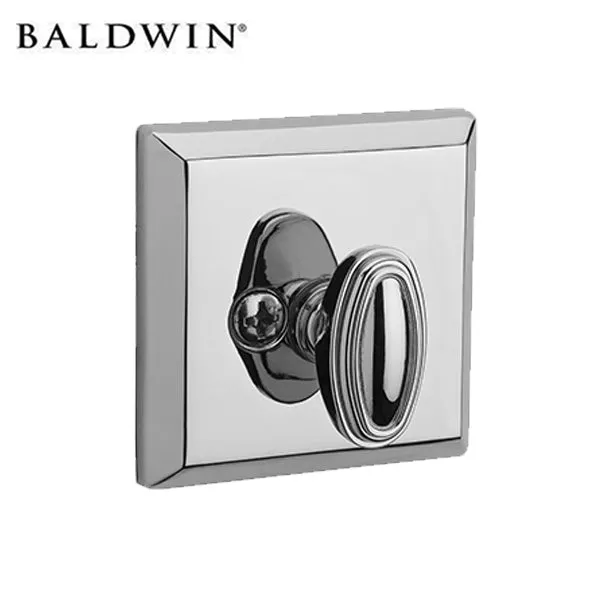

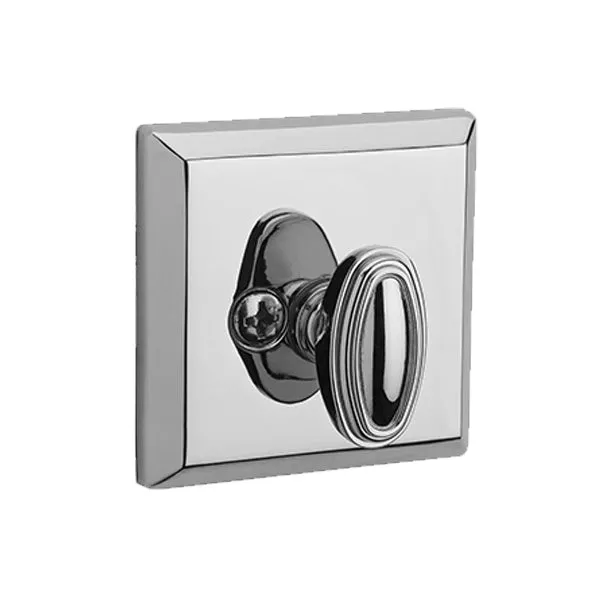

Patio Deadbolt Function- Patio deadbolt operates by Thumbturn from one side only - NO KEYED CYLINDER. (One Sided - meant to be used on doors that do NOT have a hole drilled all the way through them)

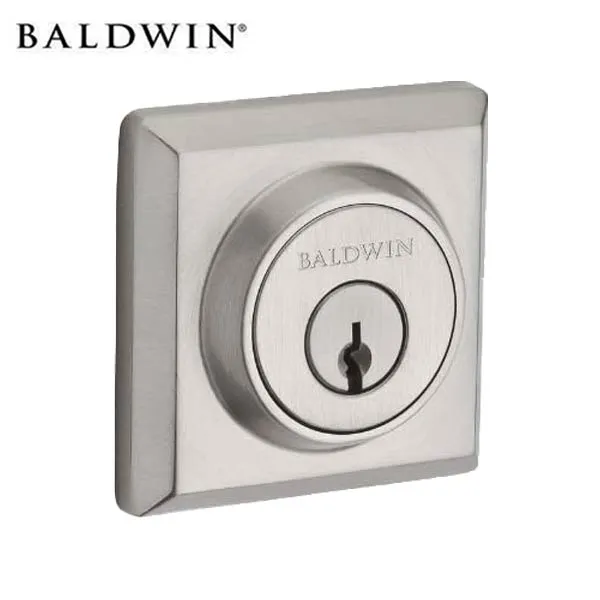

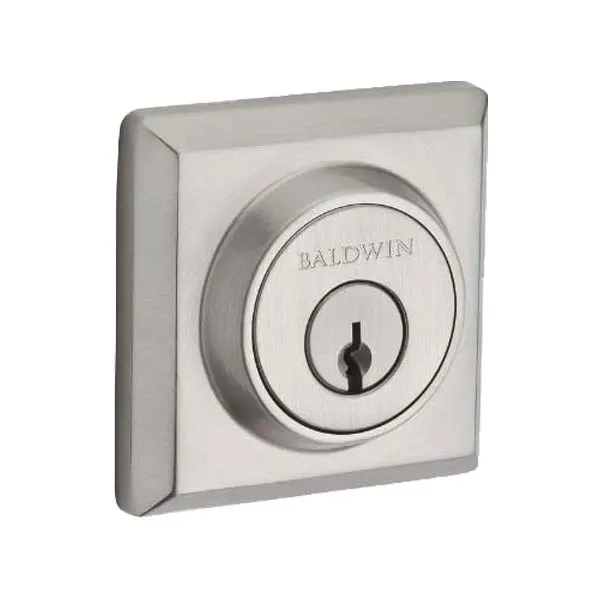

Single Deadbolt Function- Single cylinder deadbolt operates with a key on the exterior and a thumbturn on the interior (For use on exterior doors where additional security is needed, pair with a keyed entry for two points of locking)

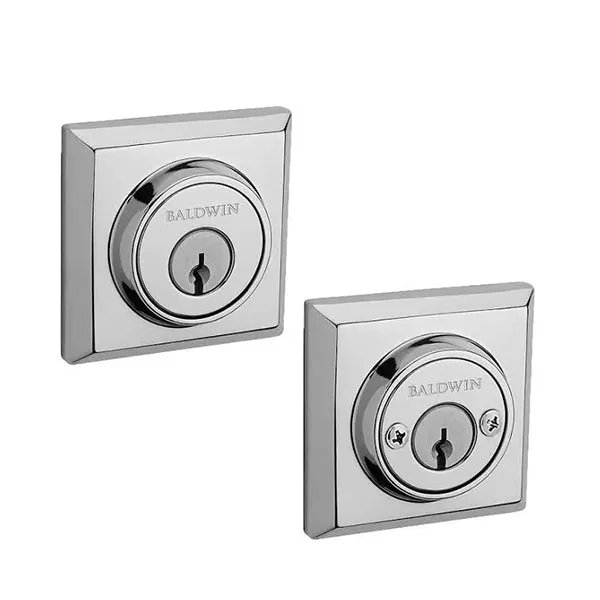

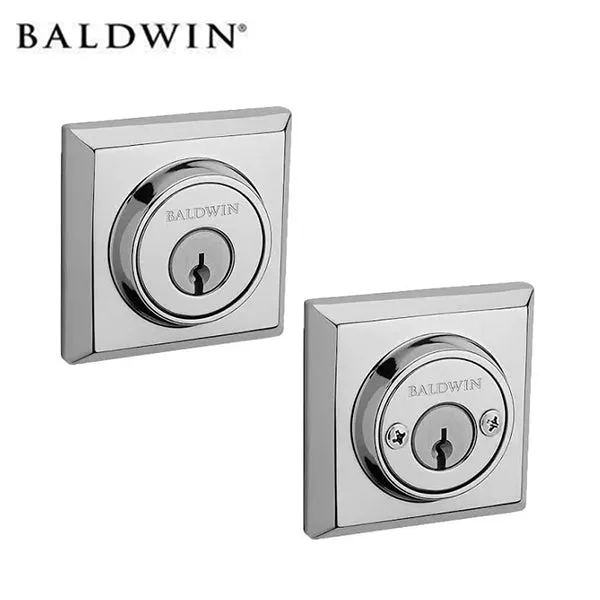

Double Deadbolt Function- Double cylinder deadbolt operates with a key on the exterior and interior (For use on exterior doors with glass panes or gates where additional security is needed)
Features:
- Solid forged brass construction.
- Features 1" solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
- Features low profile cylinder projection.
- 2-1/8" cross bore and 1" edge bore for latch.
- Accommodates door thickness 1-3/4" to 2". Up to 2-1/2" thick door door with service part kit.
- Baldwin 5-pin C-Keyway standard
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors.
- Functions available: Patio, single cylinder and double cylinder.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Specifications
| Configuration | Deadbolt |
| Function | Patio, Single Cylinder, Double Cylinder |
| Cylinder | 5-pin keying cylinder |
| Finish | 260 Polished Chrome |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Diameter | 2.34375 " |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Door Thickness | 1.75" in |
| Deadbolt Diameter | 2.125" in |
| Concealed Screws | No |
| BHMA Certification | Grade 1 |
