Product Details
＋

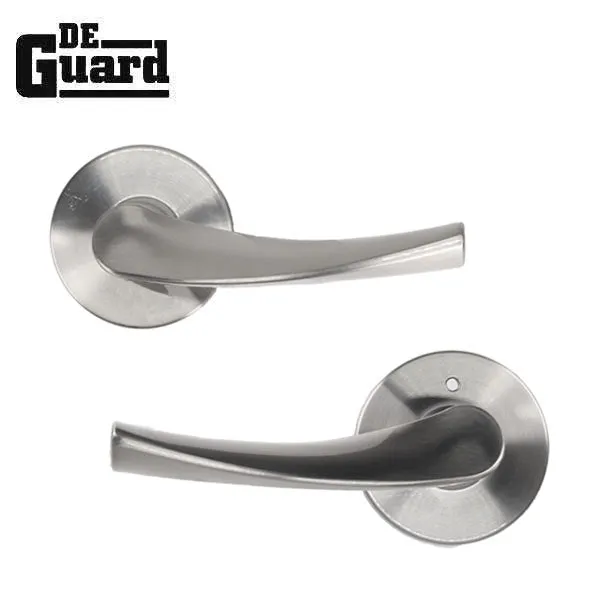

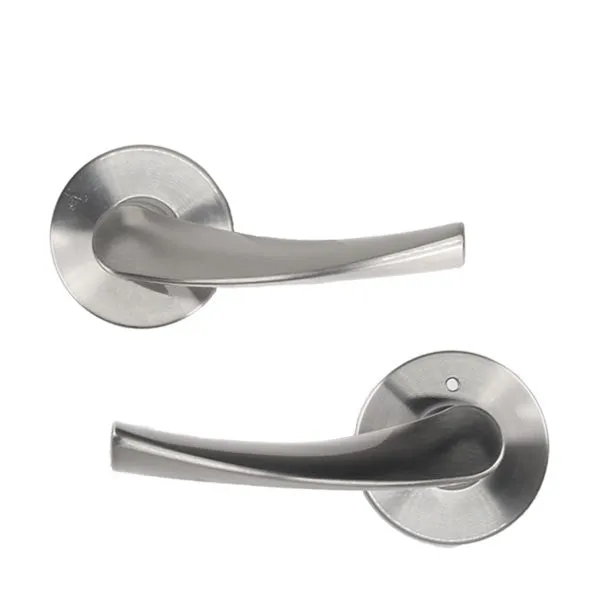

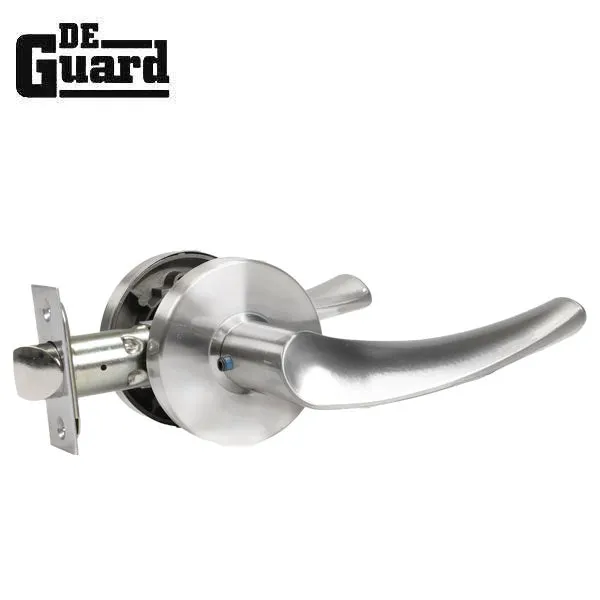

This Contemporary Wave Lever Set provides the perfect balance between form, function, and state-of-the-art security. This Satin Nickel finish is beautiful, resistant to smudging, and offers outstanding durability. These locksets are designed to fit most residential doors, have adjustable latches, and meet the uncompromising grading standards of the ANSI for residential and builders hardware.
Features
- No locking function
- Easy Installation: only tool required is a screwdriver
- Latch features a radius faceplate or can be easily converted to a drive-in style
- Does not have a keyed cylinder, not for use where keyed security is required
- Reversible handing
Specifications
| Configuration | Leverset |
| Assembled Depth (in.) | 6.41 in |
| Assembled Height (in.) | 2.56 in |
| Assembled Width (in.) | 5.77 in |
| Cross bore diameter (in.) | 1 in. |
| Lever grip length (in.) | 4.82 |
| Lever housing height (in.) | 2.5 |
| Lever housing width (in.) | 2.5 |
| Maximum door thickness (in.) | 1.75 |
| Minimum door thickness (in.) | 1.375 |
| Projection (in.) | .49 |
| Strike height (in.) | 2.25 |
| Strike width (in.) | 1.75 |
| Throw length (in.) | .5 |
| Function | Passage |
| Lever Style: | Wave |
| Cylinder | No Cylinder |
| Finish | 150 - Satin Nickel |
| Handing | Field Reversible |
| Backset | Adjustable for 2-3/4", 2-3/8" backset |
| Latch Faceplate | Round Corner |
| Door Thickness | 1-3/8" to 1-3/4" (35mm ~ 45mm) |
| Handle Length | 2.1875 in. |
| Manufacturer Warranty | Limited Lifetime Warranty |
| BHMA Certification | ANSI Grade 3 |
