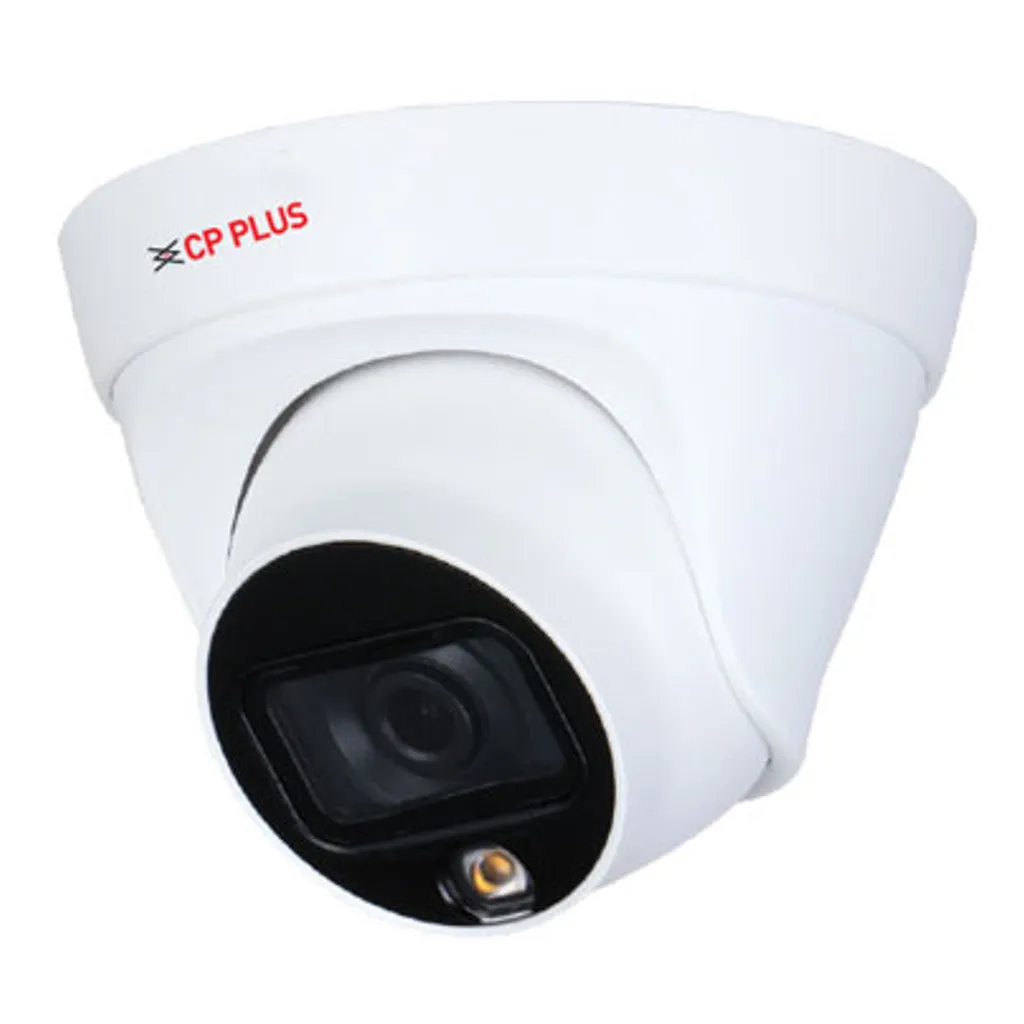

Product Description
-
1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 cm)
-
Max. 2MP(1920 x 1080)@25/30fps
-
Smart H.265 and Smart H.264 dual-stream encoding
-
DWDR, Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
3.6mm fixed lens (2.8mm optional)
-
Support IP67, PoE
-
Built-in efficient LED illuminator, and the max. illumination distance is 20 Mtr.
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-UNC-DA21L2-GP-V3 |
|
Image Sensor |
1/2.8" 2Megapixel progressive CMOS (0.9071 cm) |
|
Minimum Illumination |
|
|
Effective Pixels |
1920 (H) x 1080 (V) |
|
Lens |
3.6mm (2.8mm Optional) |
|
Frame Rate |
Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
|
Gain Control (AGC) |
Auto/Manual |
|
ICR |
Color/B/W |
|
Privacy Mask |
4 Area |
|
S/N Ratio |
>56dB |
|
Shutter Speed |
Auto/Manual, 1/3~1/100000s |
|
Angle of View |
3.6mm: Horizontal: 88°; Vertical: 46°; Diagonal: 104° 2.8mm: Horizontal: 106°; Vertical: 56°; Diagonal: 127° |
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genete |
|
ROI |
Yes (4 areas) |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Motion Detection |
Off / On (4 area, Rectangle) |
|
Back Light Compensation |
BLC / HLC / DWDR |
|
Video Compression |
Smart H.265 / H.265/ Smart H.264 / H.264/ H.264B/ MJPEG (only supported by the sub stream) |
|
Bit Rate |
H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6400 Kbps |
|
Illumination Distance |
20 Mtr |
|
Operating Temperature |
-40° C ~ 60° C (-40° F ~ 140° F) / Less than 95% RH |
|
Power Source |
12V DC/PoE (802.3af) |
|
Power Consumption |
Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR H.265 IR intensity): 4.2W (12V DC); 5.3W (PoE) |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Casing |
Metal Plastic |
|
Dimension |
85.5 mm × Φ109 mm |
|
Weatherproof Standard |
IP67 |
|
Weight |
0.24kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) - L x B x H |
85.5 mm × Φ109 mm
|
|
Unit of Measurement |
1 Piece |
|
Weight |
0.24kg |
|
Generic Type |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country of Origin |
India |
