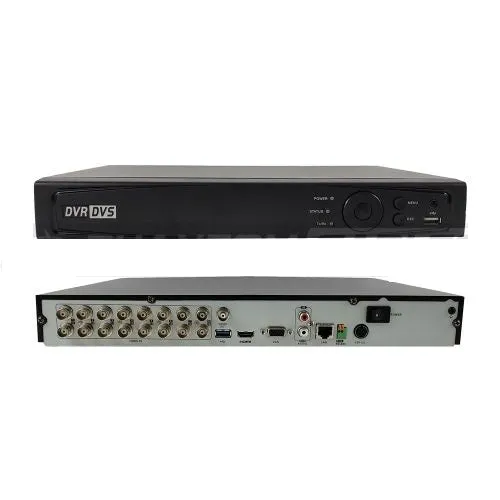

DVR Security Camera System 16-Channel /

/ 24-Channel IP

IP HD-TVI, AHD, CVI, CVBS, DVR (XVR)

This DVR can support a maximum of 16 analog channels or a maximum of 24 IP channels for a total of 24 cameras in any combination. The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports.

Features

• Support H.265 Pro /H.265 Pro/H.265 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input
• Maximum 16 analog or 24 IP camera inputs – Maximum 24 cameras (up to 6 MP)
• Maximum 800m for 1080p and 1200m for 720p HDTVI signal transmission

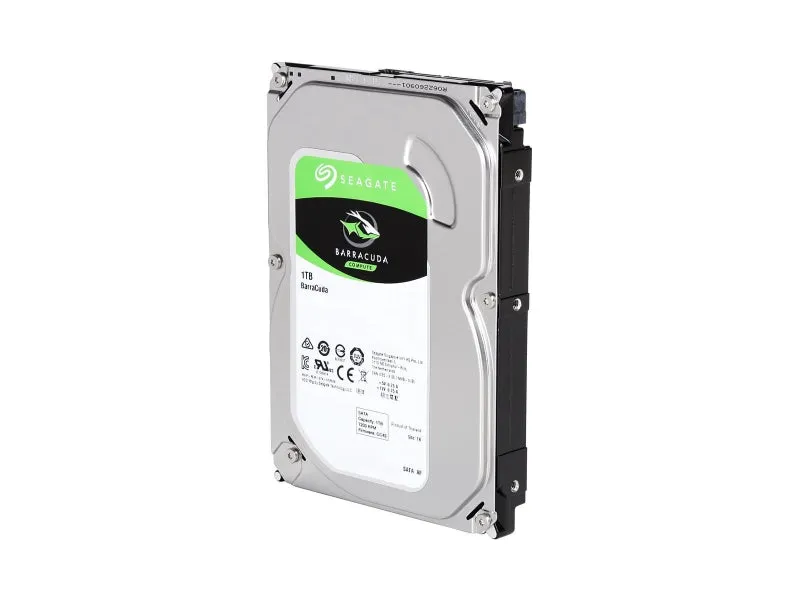

• Up to 10 TB capacity per HDD
• Support audio over coax
