SPECIFICATIONS

Features:

- 120 PIR sensor camera, support 20MP/16MP/12MP/8MP / 5MP / 3MP selectable image resolution, 1080P 30fps    video. Infrared camera survey for wild animals.

- 1 / 5 / 10 / 30 seconds / minutes interval between motions optional. Camera can be programmed to operate either in    PIR mode or time lapse mode.

- IR flash for color photo / video day or black and white photo / video at night. HD video (1080P) with sound.

- Real temperature, time and date to be stamped in the picture, so you know when the picture or video was taken.

- 850nm IR LEDs, super long detection range up to 20m / 66 feet. Trigger time is 0.3s, fast fire continuous shooting,    never miss any important picture.

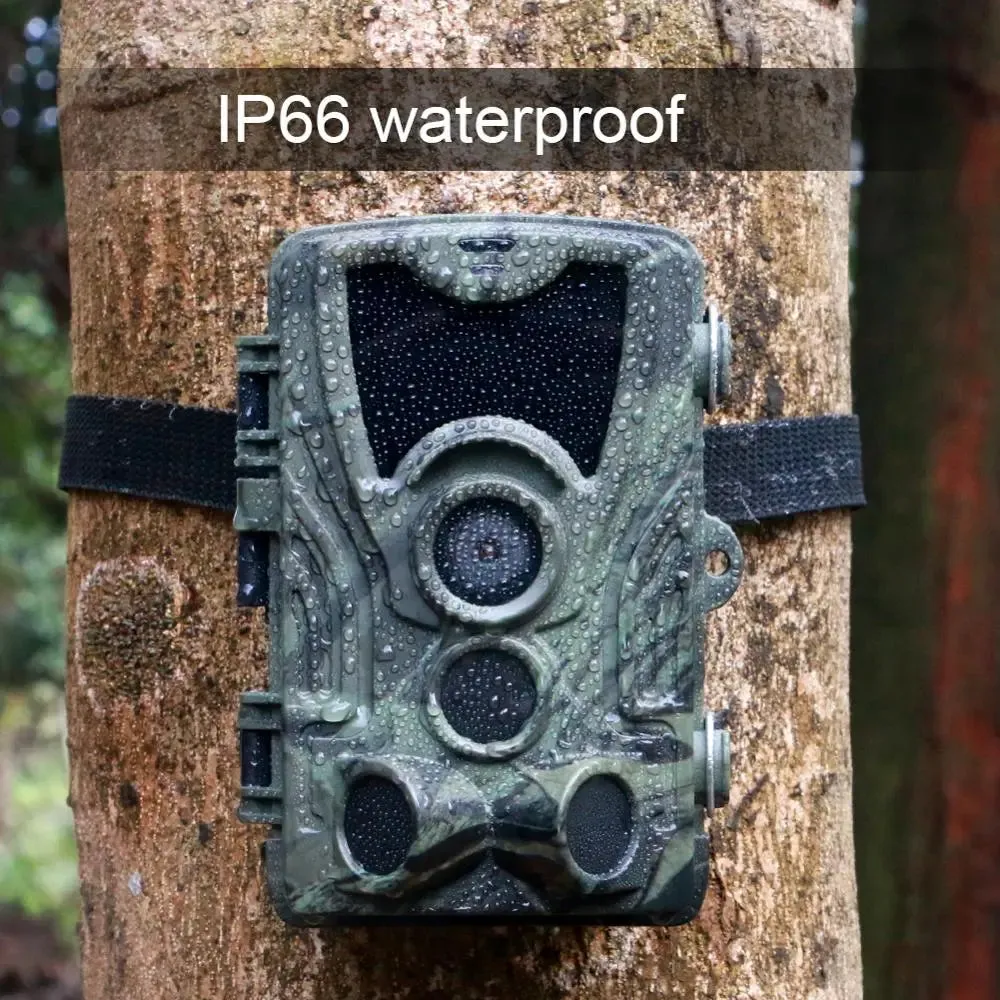

- IPX65 sealed waterproof appearance, effectively prevent rainwater dust and insects from entering.

- Support Micro SD card / USB / AV output (micro SD card is not included).

- Great tool for hunting, traveling, camping, tracking domestic / wild animals. Easy to use and mount.

- It can be triggered by any movement of human (or animals) in a certain region monitored by motion sensor.

- The infrared remoter is an input device of the camera and primarily used for customer settings. Its maximum remote  distance is 20 meters.

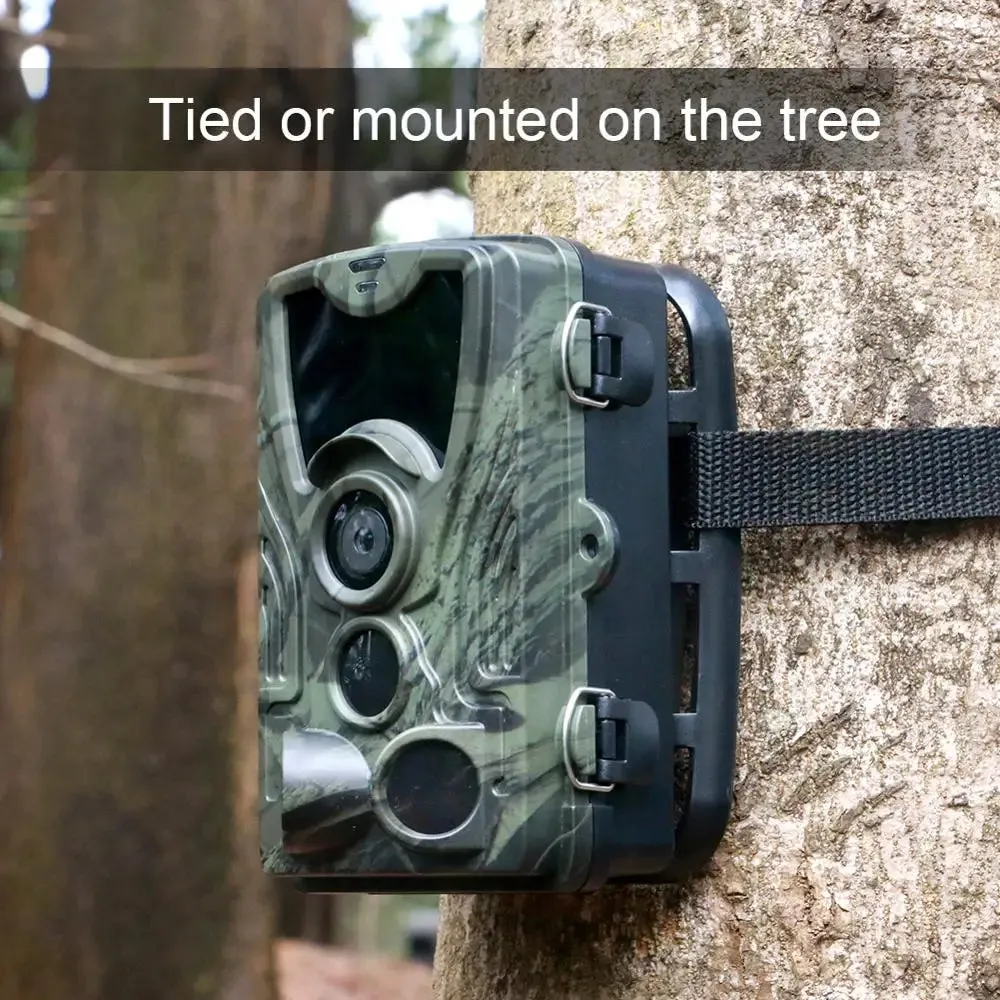

- With the fixed rope with buckle, easy to fix to tree rods and tree branches.

Note:

- Please insert the micro SD card when the camera is power off.

- Please do not insert or take out the micro SD card when the camera is power on.

- Recommended formatting the micro SD card by the camera when used at the first time.

- The camera will be in USB mode when connected to a USB port of a computer. In this case, the micro SD card function as a removable disk.

- Please ensure sufficient power when having firmware upgrade, otherwise the upgrade process could be interrupted incorrectly. If any fault occurs after improper upgrading process, the camera may stop function properly.

Package details:

1 * HC-801A Camera

1 * USB Cable

1 * Strap

1 * Manual

1 * Holder

Parameter:

Image sensor :5MP CMOS sensor

Photo resolution:  20MP/16MP/12MP/8MP/5MP/3MP

Video resolution:   1080P/30fps; 720P/30fps; 640x480P

File format:  JPG/.AVI

Lens: f=2.8; FOV=90; Auto IR filter

Display:   2.0" TFT LCD

External memory  : mirco SD card up to 32GB

Range of IR flash:   20M

IR lamp :850nm low glow LED

Triggering distance  :    20m ( Below 77°F/25°C at the Normal Level)

Lens angle   :  90°

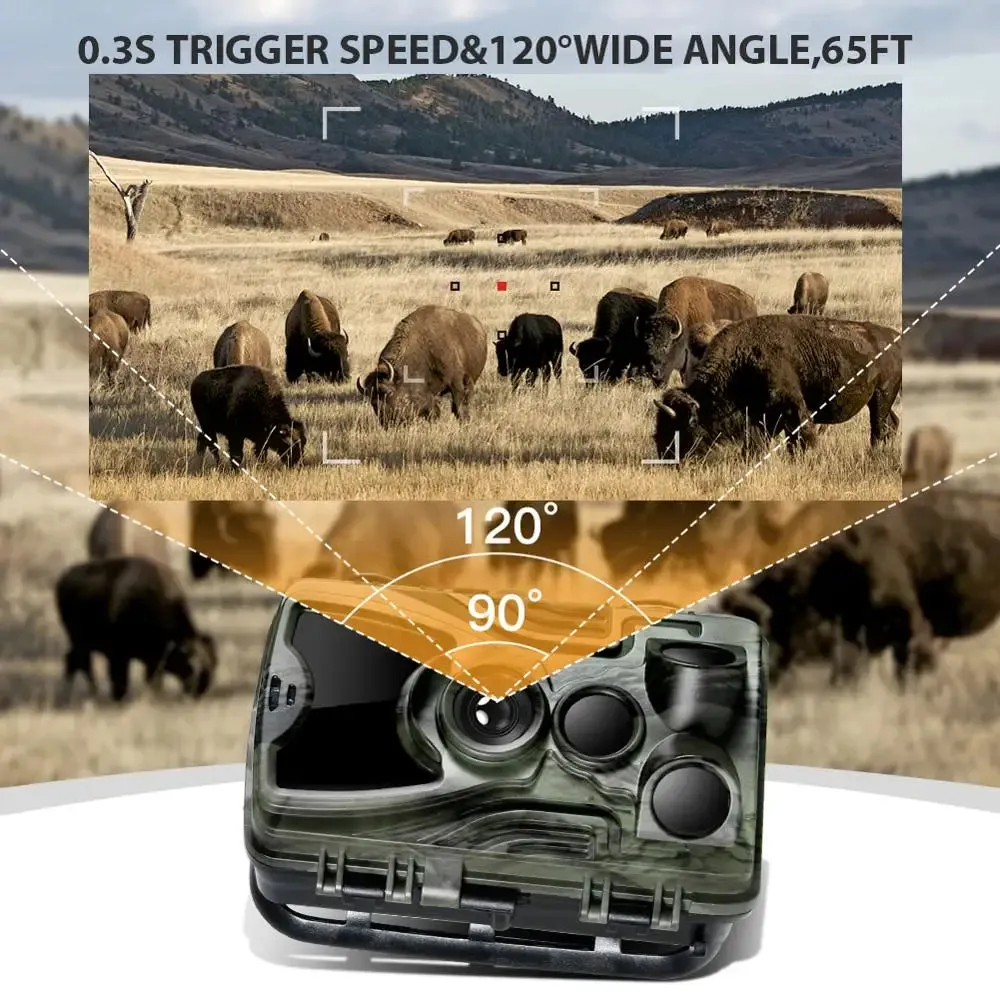

Detection angle of sensors  :120°

PIR Sensitivity: High/Normal/Low

Temperature compensation: Yes

Prep PIR Sensing Angle:  On/Off; 60~120°

Triggering time :  0.3 Second (When using the 4G SD card); Pre boot 0.2 Sesond

Trigger Interval  :  0.5sec. - 60min; Programmable

Effectiveness:  Daytine:1m-infinitive; Night time:3m-25m

Video Length: 10~60sec.;Programmable

Camera Video :  First take Picture then Video

Time Stamp:  On/Off; Include serial No.,temperature and moon phase

Time Lapse : On/Off; Time Lapse Programmable

Periodic Shot: Time Laps 5 Second ~ 24Hours

Password:  4-Digit Numbers

Build-in Microphone: Yes

Auto-distinguish images  :Color images in daytime/black & white night images

Auto Power Off : Auto power off in 2 minutes while no keypad controlling

TV-out: Yes

PC Interface:Mini USB2.0

Power supply:4xAA; Expandable to 8xAA (Not included)

external 6V power supply,at least 2A

Battery life:More than 30K photos in daytime,and more than 12K photos in night

Standby time: approx.6 months

Spray-water protected:Yes (IP protection class65)

Operating Temperature : -20 to 60 degree

Dimensions :approx.135*90*76mm

Note:
- Please insert the micro SD card when the camera is power off.
- Please do not insert or take out the micro SD card when the camera is power on.
- Recommended formatting the micro SD card by the camera when used at the first time.
- The camera will be in USB mode when connected to a USB port of a computer. In this case, the micro SD card function as a removable disk.
- Please ensure sufficient power when having firmware upgrade, otherwise the upgrade process could be interrupted incorrectly. If any fault occurs after improper upgrading process, the camera may stop function properly.
