Product Details
＋

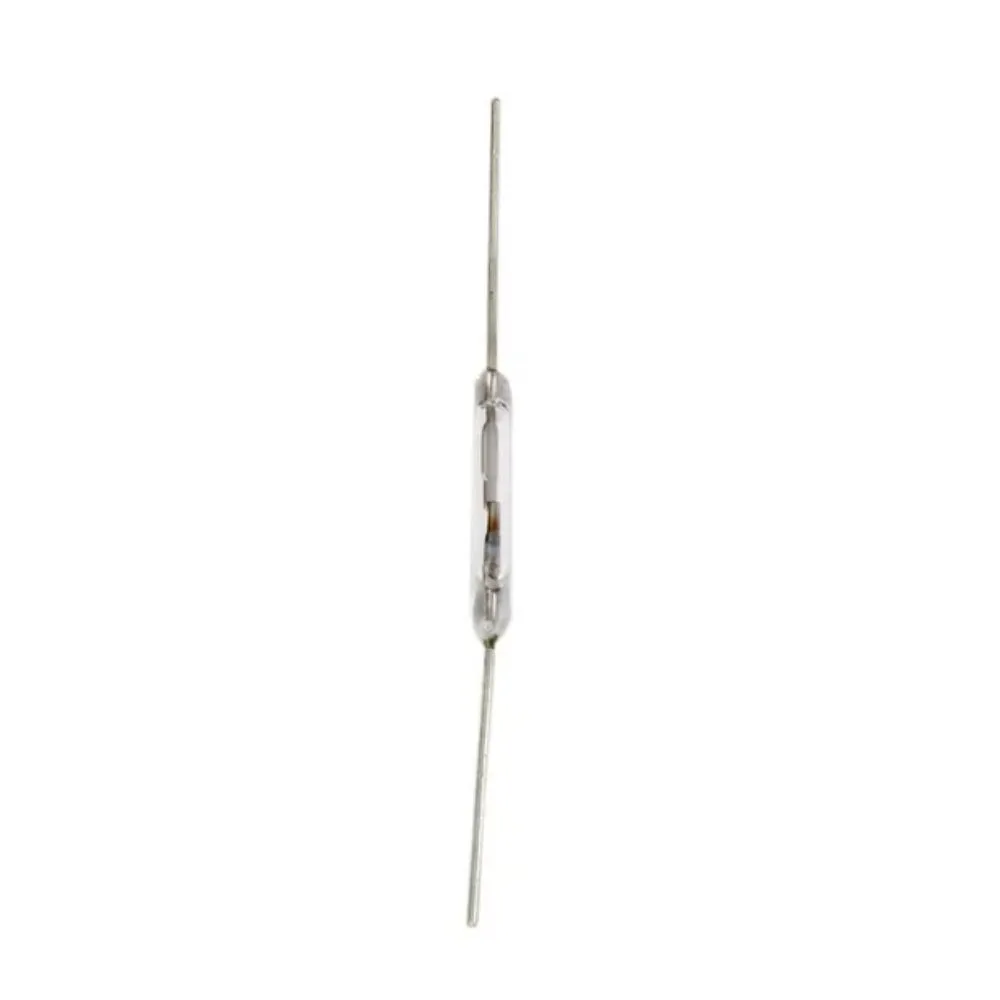

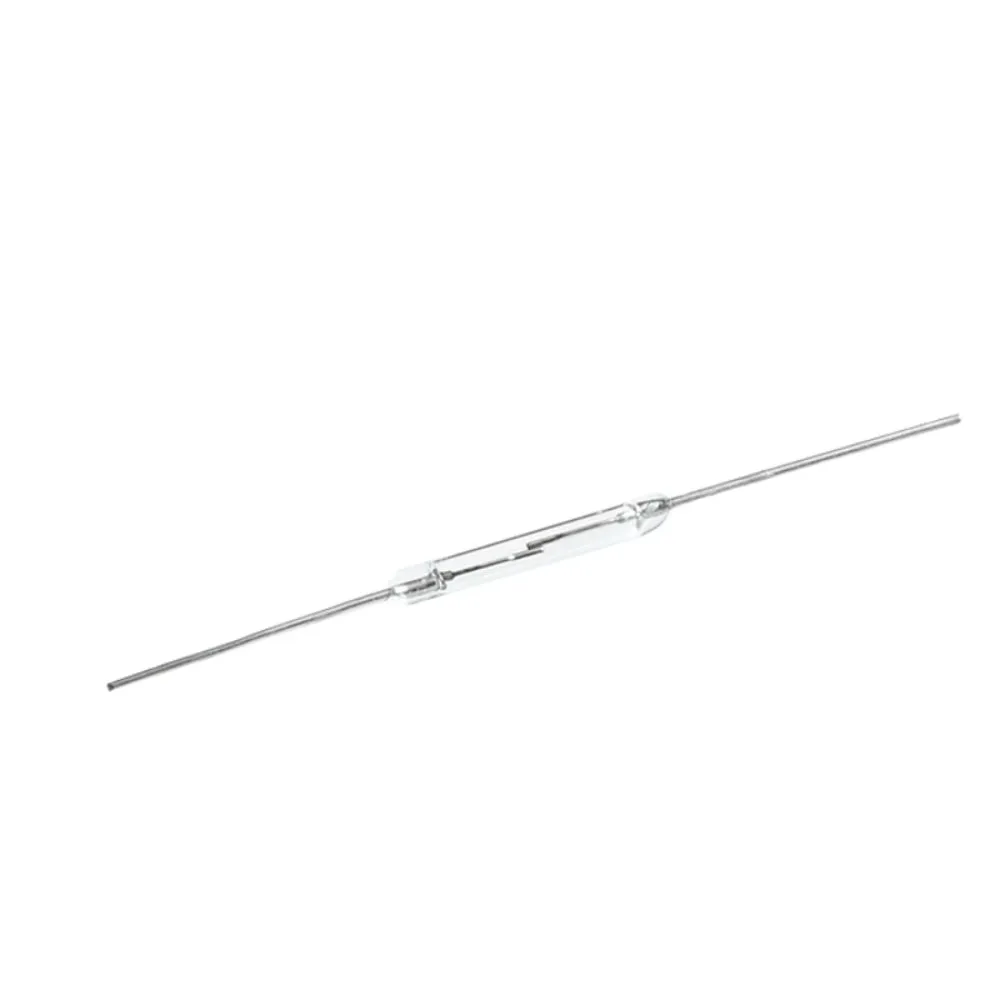

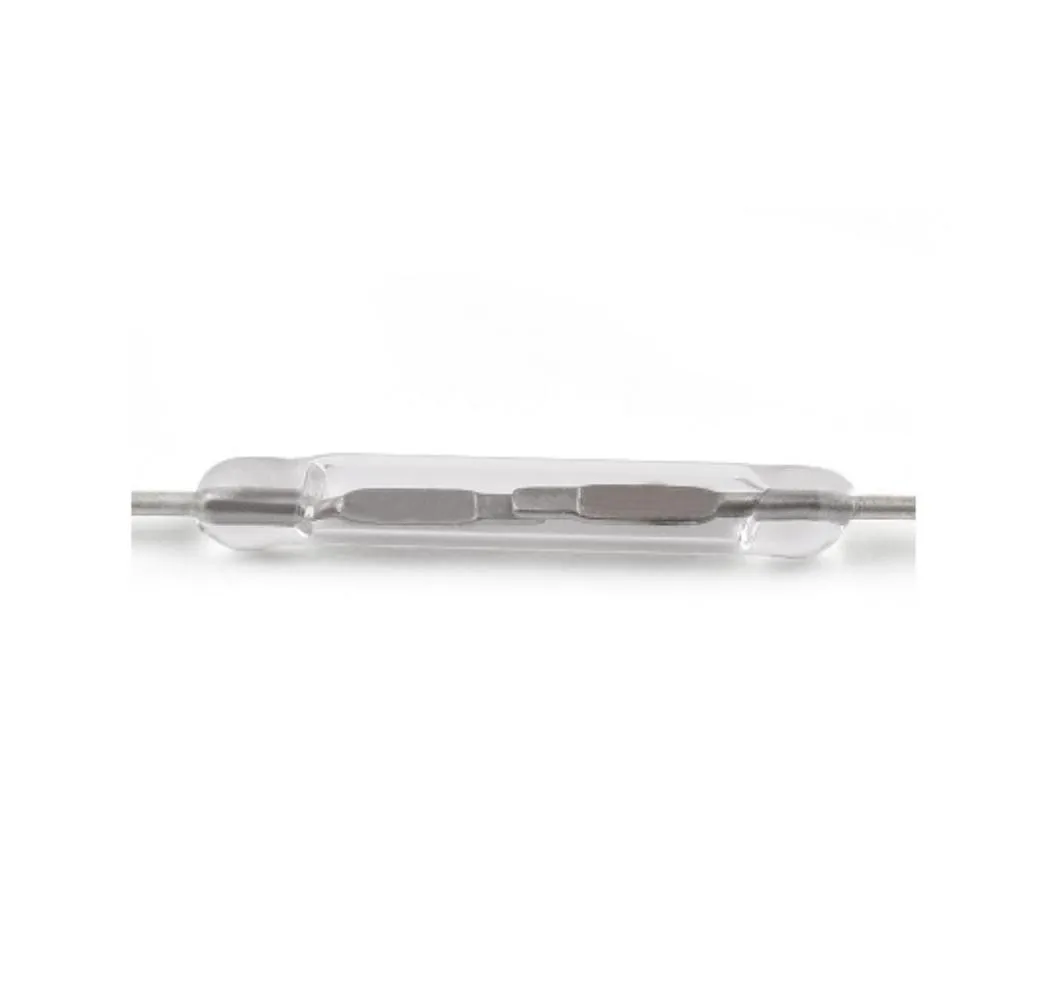

The White Reed Switch in a 2x14mm configuration is a miniature magnetic switch designed for various electronic applications where proximity sensing or contactless switching is required. The Normal Open (NO) configuration means that the switch is open (not making contact) in its default state and closes when exposed to a magnetic field.
Color: The switch features a white color, providing a neutral appearance that can blend well with different device designs.
Reed Technology: Utilizes reed switch technology, where the switch's contacts are
Features:
Miniature Design: Compact dimensions of 2x14mm make it suitable for applications with limited space.Color: The switch features a white color, providing a neutral appearance that can blend well with different device designs.
Reed Technology: Utilizes reed switch technology, where the switch's contacts are
controlled by the presence or absence of a magnetic field.
Normal Open Configuration: The switch is normally open, meaning it closes when a magnetic field is applied.
Normal Open Configuration: The switch is normally open, meaning it closes when a magnetic field is applied.
Versatile Applications:
Suitable for use in security systems, door/window sensors, proximity detectors, and other applications requiring reliable magnetic switching.Specification
- Glass Length: 14mm
- Glass Diameter: 2mm
- Total Length: 45mm
- Max. Switching Voltage: 300 VDC
- Min. Breakdown Voltage: 150 VDC
- Max. Contact Rating: 10W
- Max. Switching Current: 0.55 A
- Max. Operate time: 0.45 ms
- Bounce time: 0.25 ms
- Max. Release time: 0.35 ms
- Resonant Frequency: 5000 HZ
- Max. Operating Frequency: 400 HZ
Features
- Small Module.
- Very easy to use.
- Direct connection in the circuit.
Package Includes
- 1 x White Reed Switch 2x14mm Normal Open
