Product Details
＋

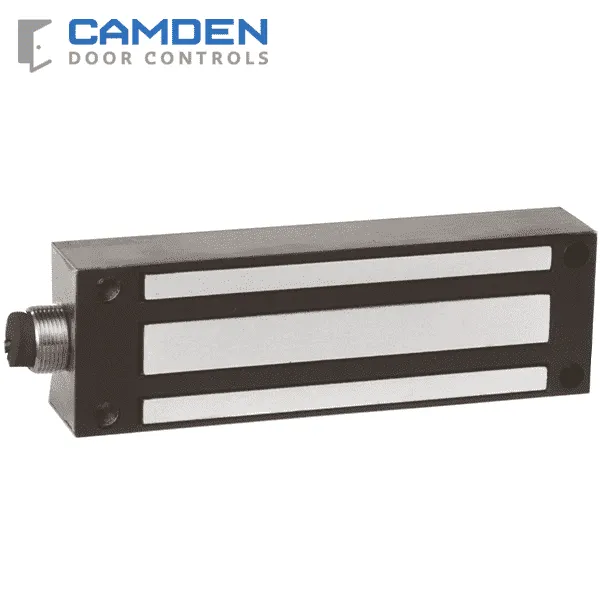

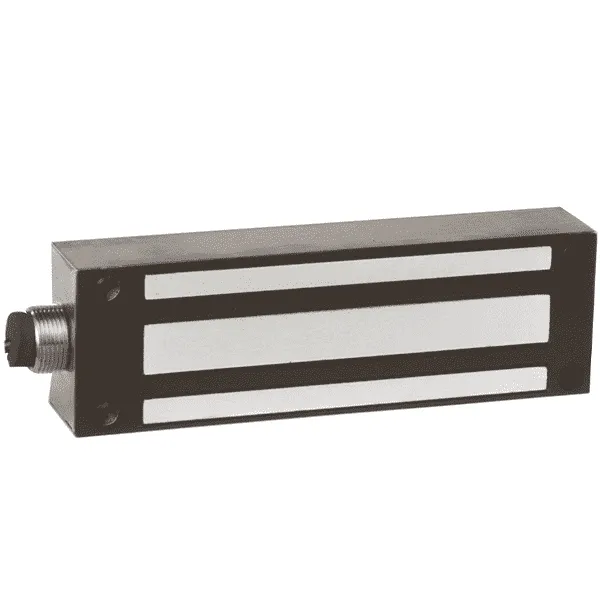

Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects
- 1,200 Lb. holding force
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- Conduit fitting for weather resistant installation
- Built-in lock sensor and relay
- Lifetime warranty
Specifications:
| Voltage: | 12/24 VDC |
| Current Draw: | 500 mA @ 12 VDC 250 mA @ 24 VDC |
| Temp Range: | 5°F to 122°F (-15°C to 50°C) |
| Contact Rating: | Bond Sensor: 1 A @ 30 VDC |
| Dimensions: | 8" x 2-1/2" x 1-5/8" (203mm x 63mm x 41.5mm) |
Spec Sheets
